3. Integration¶

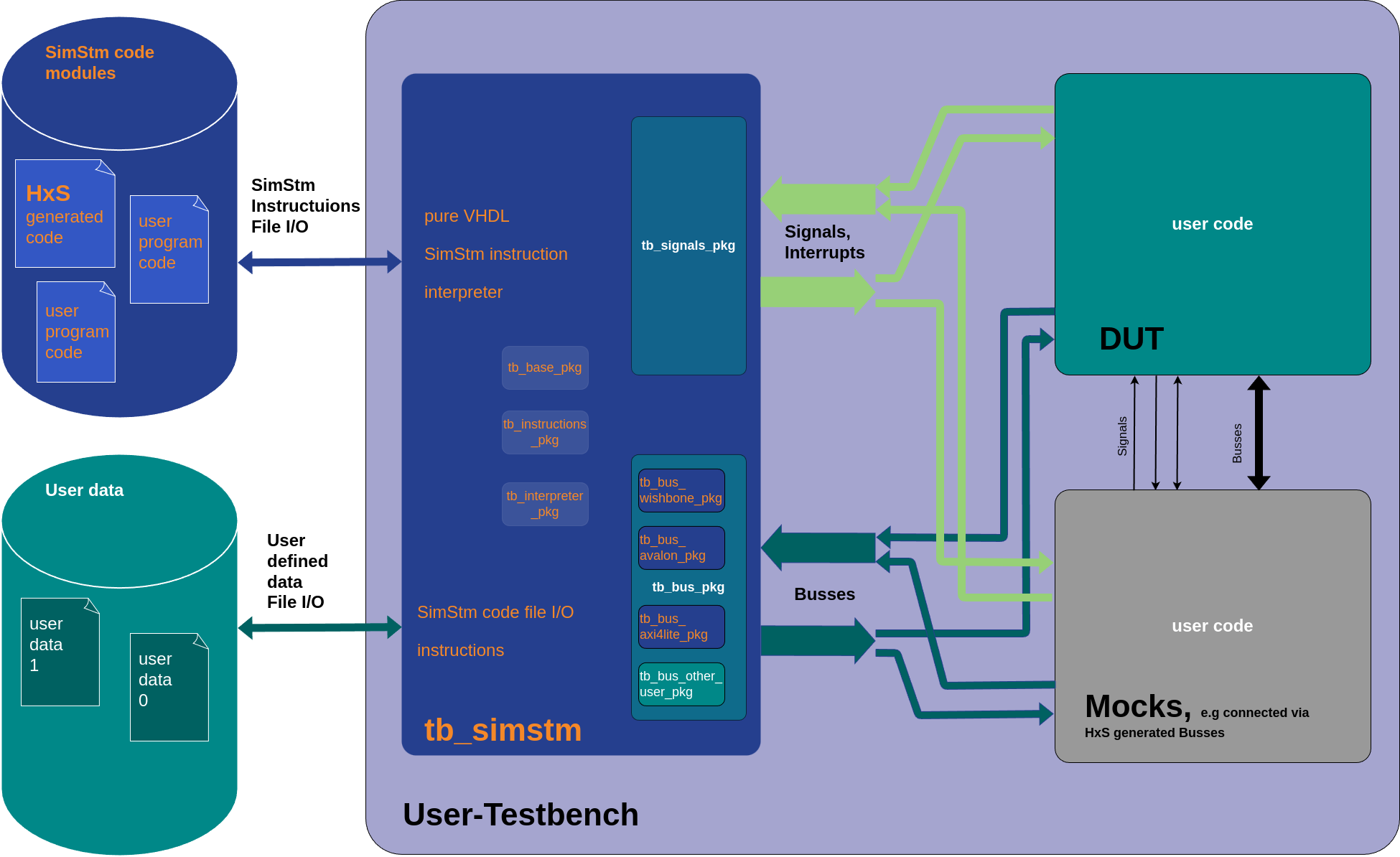

The following picture illustrates how the tb_simstm module is integrated into the user testbench. The tb_simstm module should not be changed by the user. The signals and interrupts that the user wants to control the DUT or the Mocks shall be defined in tb_signals_pkg. The buses the user wants to connect to the DUT or the Mocks shall be defined in tb_bus_pkg, and eventually, a new bus type package if the predefined buses aren’t sufficient. All other packages shall not be changed.
